• ouput voltage :
  at power voltage +12VDC ; [1] +10.0VDC1DVC,[0] 0.5V or less
  at power voltage +24VDC ; [1] +20.0VDC1VDC,[0] 0.5VDC or less

• output wave feature : square wave
• rise time : 1 microsecond or less
• variation of output pulse duty: [1] : [0] = 1 : 1.5 - 1.5 : 1
• output resistance : 2k
• accuracy : 20% of each of the revolutions or less
• operating temperature: 0- +50
• maximum speed of revolution: 5000 RPM
• shaft loading : axial - 1.5kg(3.307 lbs.) or less, radial - 3.0kg(6.614 lbs.) or less
• supply voltage :
  +12DVC10%(ripple content - 1% or less)
  +24DVC10%(ripple content - 1% or less)
• current consumption:
  one-signal output - 40mA or less
  two-signals output - 80mA or less

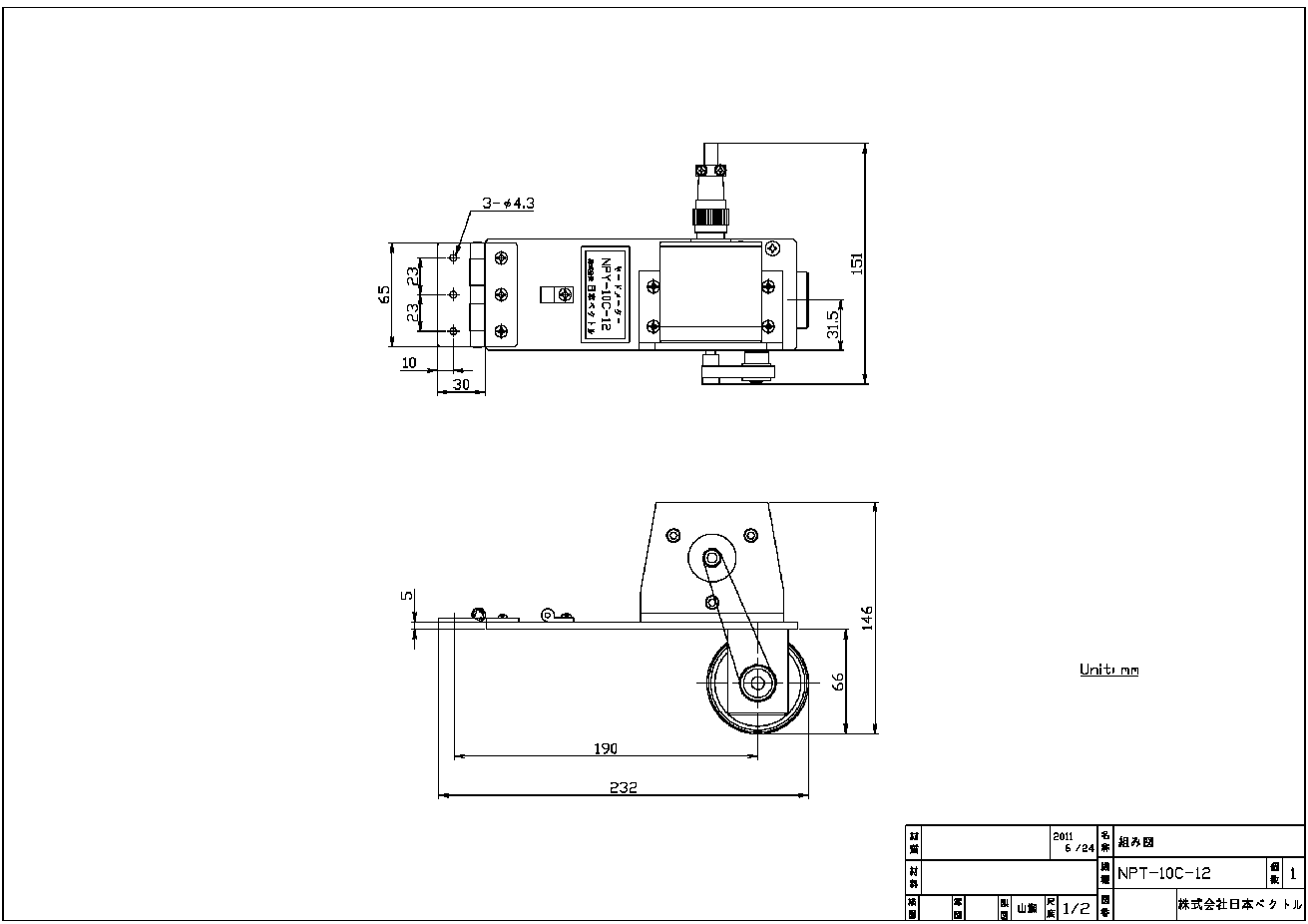

• Dimensions

Model	Minimum Unit of Measurement	Maximum Measurement Speed	Power Source	Connections
NPY-1M-12	1mm	300m/min.	12VDC - 24VDC10% 40mA or less	‚P signal output refer to list 1
NPY-1C-12	1cm
NPY-10C-12	10cm
NPY-1M-12W	1mm		12VDC - 24VDC10% 80mA or less	2 signals output (Quadrature phasing: 90 25) refer to list 2
NPY-1C-12W	1cm
NPY-10C-12W	10cm

Model	Minimum Unit of Measurement	Maximum Measurement Speed	Power Source	Connections
NPY-0.01F-12	0.01 ft.	300m(app.984 ft.)/min.	12VDC - 24VDC 10% 40mA or less	‚P signal output refer to list 1
NPY-0.1F-12	0.1 ft.
NPY-0.01F-12W	0.01 ft.		12VDC - 24VDC10% 80mA or less	2 signals output (Quadrature phasing: 90 25) refer to list 2
NPY-0.1F-12W	0.1 ft.

List 1

Pin No.	Function
‚P(red)	power source
‚Q(black)	ground
‚R(white)	output(+)

List 2

Pin No.	Function
‚P(red)	power source
‚Q(black)	ground
‚R(white)	output(+)(1)
‚S(green)	output(+)(2)
