• ouput voltage :
  at power voltage +12VDC ; [1] +10.0VDC1DVC,[0] 0.8V or less
  at power voltage +24VDC ; [1] +20.0VDC1VDC,[0] 0.8VDC or less
  at power voltage +5VDC ; [1] +4.5VDC0.5VDC,[0] 0.8VDC or less

• output wave feature : square wave
• rise time : 1 microsecond or less
• variation of output pulse duty: [1] : [0] = 1 : 1.5 - 1.5 : 1
• output resistance : 2k
• number of pulses per revolution : 1,2,5,10,20,50,60,100,200,500
• accuracy : 20% of each of the revolutions or less
• operating temperature: 0- +50
• maximum speed of revolution: 5000 RPM
• shaft loading : axial - 1.5kg(3.307 lbs.) or less, radial - 3.0kg(6.614 lbs.) or less
• supply voltage :
  +12DVC10%(ripple content - 1% or less)
  +24DVC10%(ripple content - 1% or less)
• current consumption:
  one-signal output - 40mA or less
  two-signals output - 80mA or less
• sink current: 50mA and under

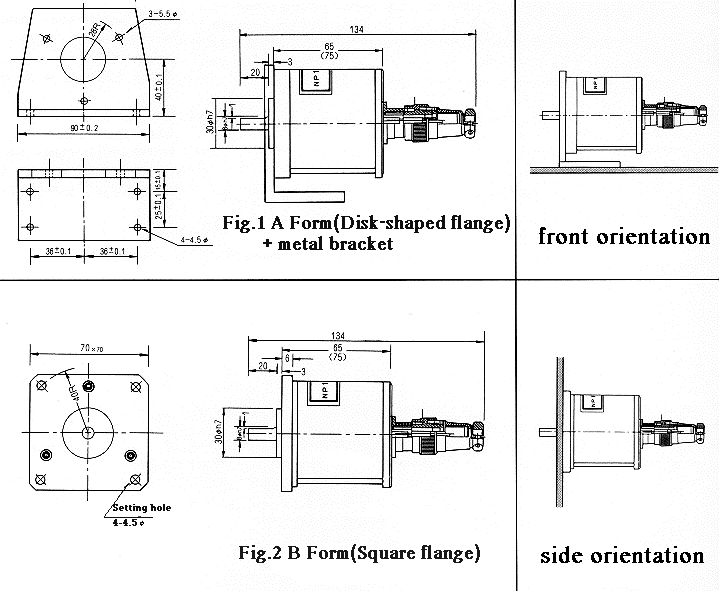

• Dimensions

2 signal output (Quadrature phasing: 9025)
Pin No.	Function
‚P(red)	power source
‚Q(black)	ground
‚R(white)	output(+)(1)
‚S(green)	output(+)(2)
